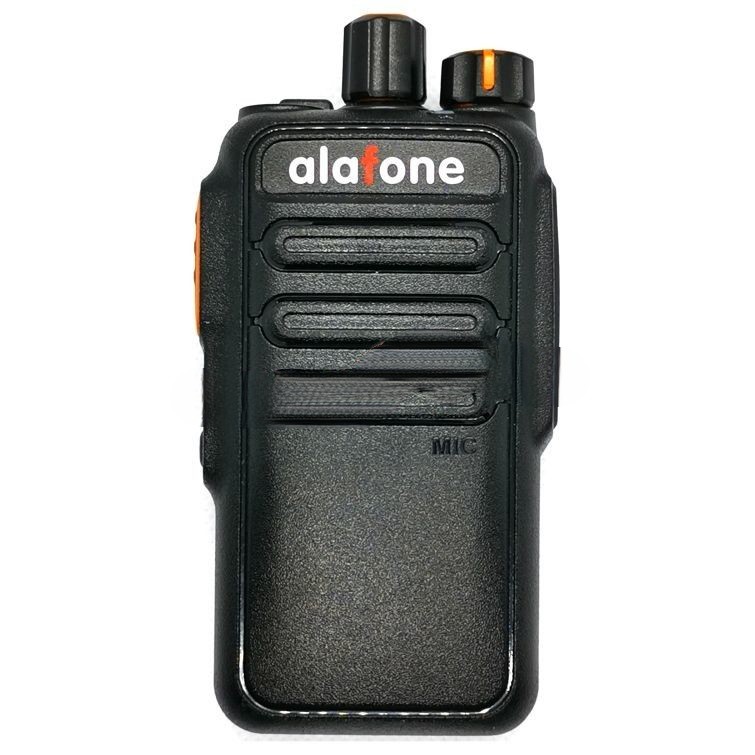

Alafone A17Plus Upgraded U.S. military Professional Two-way Radio
Alafone A17Plus Security Long Range Talking Walkie-Talkie UHF 400-480MHz Two Way Radio
A17Plus is a high-quality commercial radio. The U.S. military standard, strong and durable. Unique sound cavity design, high-fidelity, crystal clear voice quality. Equipped with high-capacity li-ion battery, can provide hours of high-quality performance. Appearance of small, professional, ergonomic principles, to master comfortable.
Applications
- Service industry(Hotel, Restaurant, Supermarket, etc);
- Security, Property Management;
- Police, Firefighters, Education, Public Utilities;
- Constrution Sites & Transportation;
- Warehouse, Ports & Logistic Industry;
- Manufacturing industry
Feature:
Output Power: 5W
Frequency UHF 400-480MHz
CTCSS / DCS
Wide / Narrow Band
Monmome
Transient Monmome
Power HIGH / LOW
Warm
Scan
Scrambler
Compander
Vox Function
Squelch level: 0-9
Voice for english / chinese
Tone
Vol Inhibit Tx
Time out Timer (TOT)
Battery save
Super save
Emergency Call
Low Battery Warning
Scan
Busy Lock
Tx End Beep
Specification:
| General | |
| Frequency Range | VHF: 136-174MHz UHF: 400-480Mhz |
| Channel Capacity | 16 |
| Operating Voltage | 7.4V |
| Standard Battery | Li-Ion |
| Battery Life | Up to 24 hours |
| Frequency Stability | 2.5 ppm |
| Operating Temperature | -25 ~ +60 |
| Antenna Impedance | 50Ω |
| Dimensions (H×W×D) (with standard battery, without antenna) | 112mmx60mmx33mm |
| Weight (with antenna & standard battery) | 264g |
| Transmitter | |
| RF Output Power | 5W |
| Spurious and Harmonics | ≤ 36dBm (<1GHz) ≤ 30dBm (>1GHz) |
| FM Noise | ≤ -38dB |
| Audio Distortion | ≤ 5% |
| Receiver | |
| Sensitivity | ≤0.282μV |
| Selectivity | ≥60dB |
| Intermodulation | ≥50dB |
| Spurious Response Rejection | ≥70dB |
| S/N | ≥40dB |
| Rated Audio Power Output | 500mW(Speaker impedance: 16 ohm) |
| Rated Audio Distortion | ≤5% (0.8W) |
Each Set Package Contain:
1 x Alafone A17Plus Walkie-Talkie (UHF 400-480Mhz)
1 x 3500mAh Li-ion Battery Pack

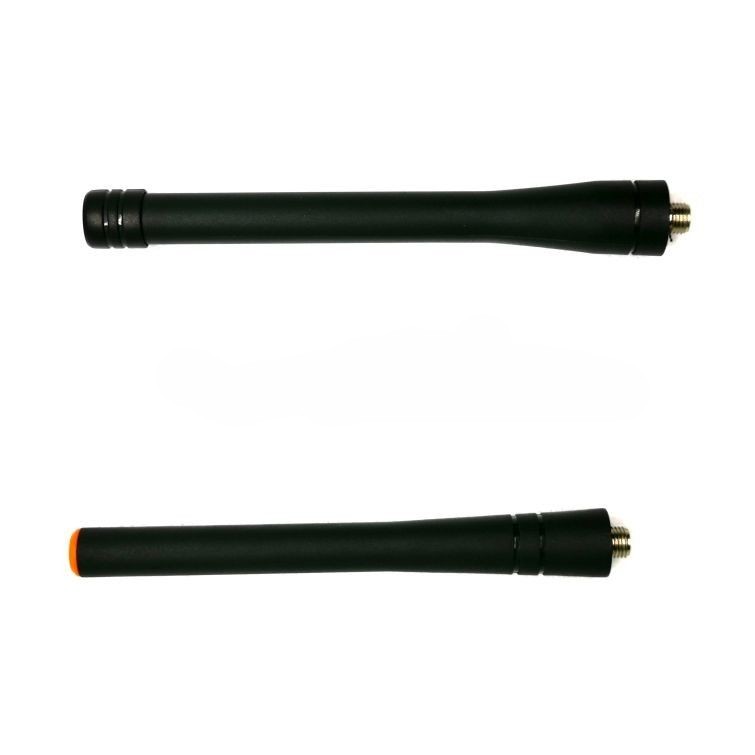

1 x UHF Antenna
1 x High Gain UHF Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger Docking
1 x AC Adaptor ( 100V ~ 240V )

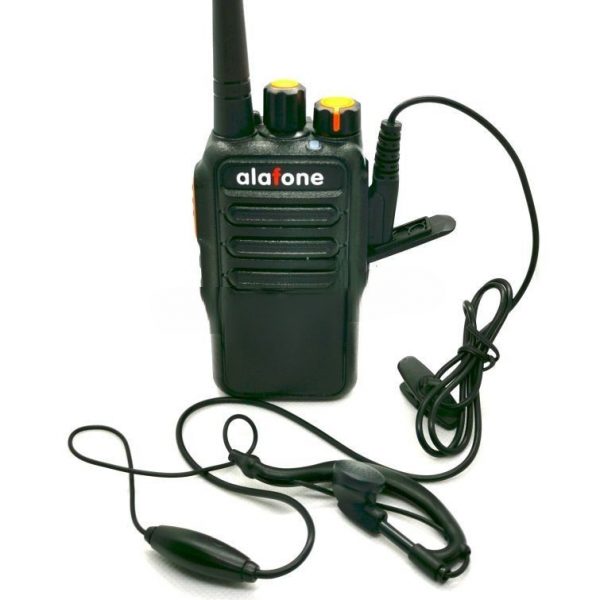

1 x PTT Earpiece
