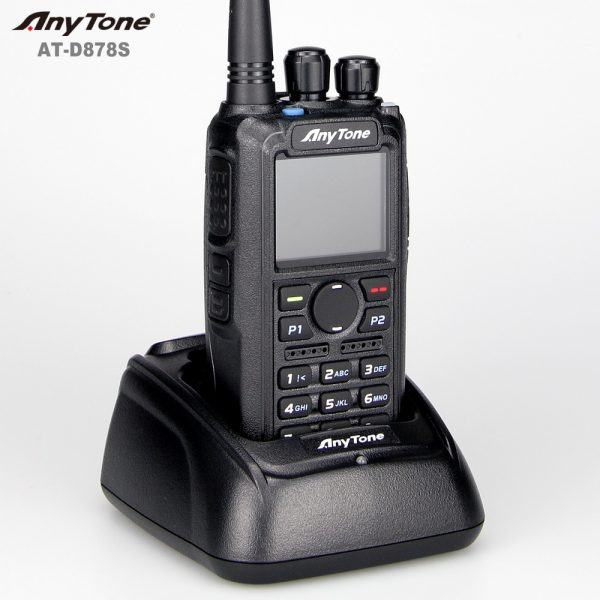

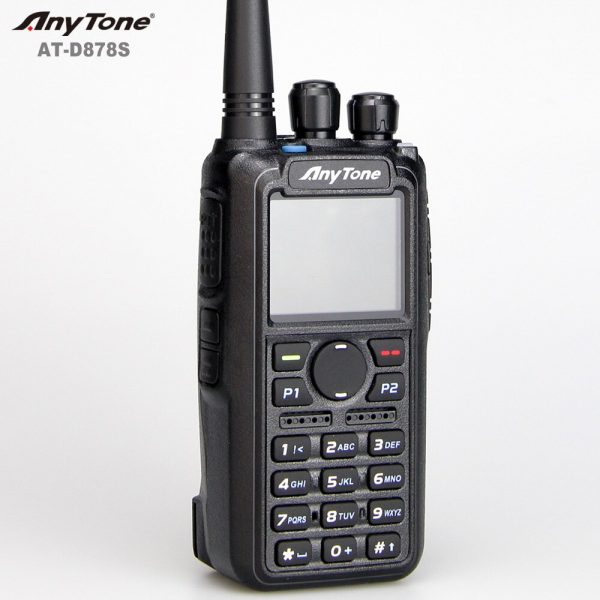

AnyTone UHF 400-480MHz Single Band Walkie Talkie AT-D878S Digital/Analog Two-Way Walkie Talkie GPS DMR Portable Walkie Talkie
MODEL NO.: AT-D878S Single band
Frequency range:
400~480MHz
Functions:
#True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant
#Power:10W turbo/5W/2.5W/0.5W
#Auto-senses digital or analog reception
#4000 channels + VFO; 200,000Contacts
#Display: 1.77 inch TFT color LCD, dual display; dual standby; dual PA
#Bandwidth: 12.5K/25K (Analog); 12.5K (DMR)
#Fixed and defined CTCSS/DCS encode and decode
#DTMF/2TONE/5TONE encode and decode
#Four different Tone-pluse frequencies
#Individual/Group/All call
#Support Contact Manager
#Display the Caller ID and name
#Icon indicator or Voice prompt when connecting with repeater
#SMS via keyboard, One touch call/text
#Zone selection; Ranging function between radios with GPS
#ANI function and PTT ID; VOX; Digital Recording and Play
#Roaming function; Talker alias function
#IP connect to Motorola Repeater
#Emergency alarm (with GPS data transmission)
#Either Voice Recording 500 hours(optional) or BT (optional)
#GPS (optional)

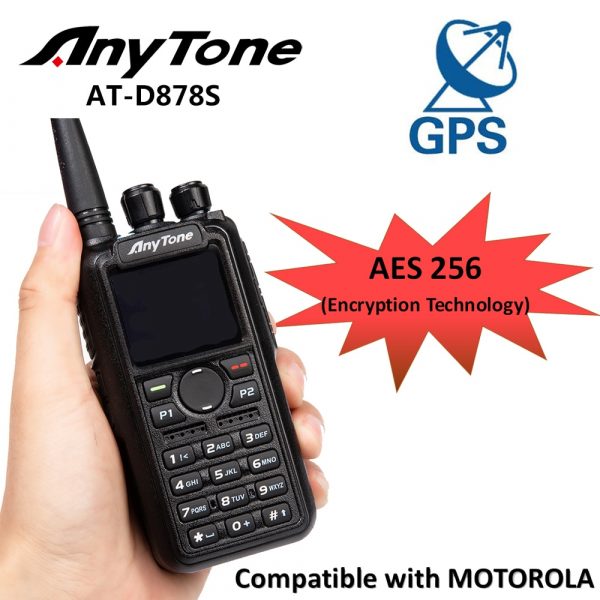

#AES256 Digital encrytion
#Earphone: KENWOOD connector; Waterproof: IP54

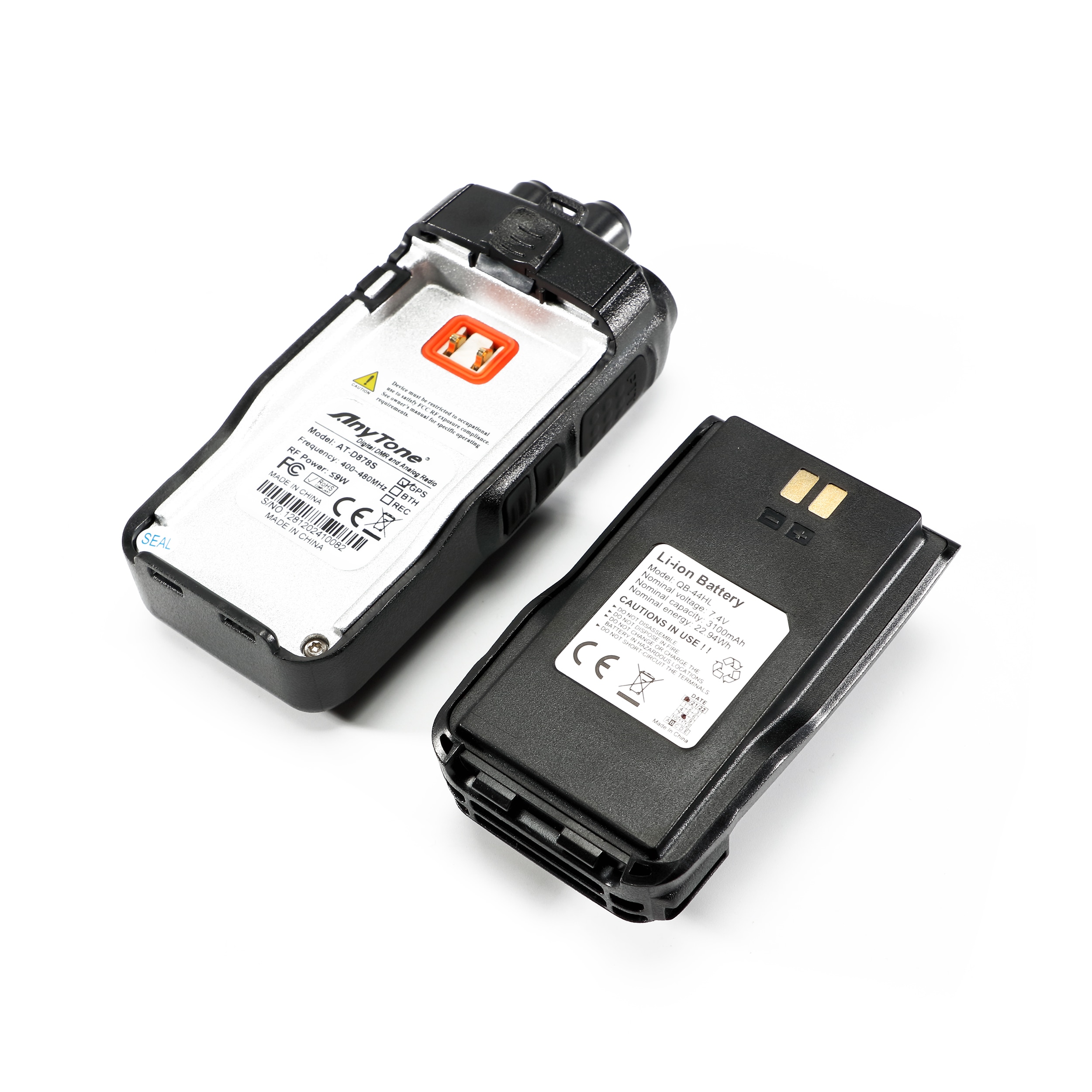

#Battery: 3100mAh Li-ion thick battery 2100mAh Polymer filmy battery(optional)
|
General
|
||
|
Frequency Range
|
UHF radio: 400-480MHz
|
|
|
Channel Capacity
|
4000 channels
|
|
|
Channel Spacing
|
25KHz (Wide Band) ,12.5KHz (Narrow Band)
|
|
|
Phase-locked Step
|
5KHz, 6.25KHz
|
|
|
Operating Voltage
|
7.4V DC ±20% /(2100mAh/3100mAh)
|
|
|
Frequency Stability
|
±2.5ppm
|
|
|
Operating Temperature
|
-20℃~ +55℃
|
|
|
Size
|
129×61×39mm (with battery pack)
|
|
|
Weight
|
282g (with battery pack, antenna)
|
|
|
Receiving Part
|
||
|
Wide band
|
Narrow band
|
|
|
Sensitivity(12dB SINAD)
|
≤0.25μV
|
≤0.35μV
|
|
Digital Sensitivity
|
0.3uV/-117.4dBm (BER 5%)
0.7uV/-110dBm (BER 1%)
|
|
|
Adjacent Channel Selectivity
|
≥70dB
|
≥60dB
|
|
Spurious Emission
|
≤-57dB
|
≤-57dB
|
|
Spurious Rejection
|
≥70dB
|
≥70dB
|
|
Blocking
|
84db
|
|
|
Hum & Noise
|
≥45dB
|
≥40dB
|
|
Audio Distortion
|
≤5%
|
|
|
Audio Power Output
|
1000mW/16Ω
|
|
|
Transmitting Part
|
||
|
Wide band
|
Narrow band
|
|
|
Power Output
|
UHF radio: 9/5/2.5/1W
VHF radio: 10/5/2.5/1W
|
|
|
Modulation
|
±5.0KHz@25KHz
|
±2.5KHz@12.5KHz
|
|
Adjacent Channel Power
|
≥70dB
|
≥60dB
|
|
Hum & Noise
|
≥40dB
|
≥36dB
|
|
Spurious Emission
|
≤-36dBm
|
≤-36dBm
|
|
4FSK Digital Modulation
|
12.5KHz（data）7K60FXD
12.5KHz（data+voice）7K60FXE
|
|
|
Audio Distortion
|
≤5%
|
|
|
Error rate
|
≤3%
|
|
