Baofeng ham Radio BF-A58S tri-band FM two way radio 136-173.975MHz/200-259.975MHz/400-519.975MHz 128CH handheld Transceiver with free Handsfree
Features:
Tri-band 136-173.975MHz/200-259.975MHz/400-519.975MHz
Dual display, Dual Standby
FM Radio 65-108MHz
2800mAh 7.4V high capacity Li-ion battery pack
TDR
Roger Beep
VFO & Memory Channels
DTMF encoded
VOX (Voice operation Transmission)
Up to 128 memory channels
Low battery alarm function
DCS and CTCSS
Broad band (Wide)/Narrow band (Narrow selectable
Built-in Flashlight
Scan function
Keypad lock
Power Saveing function
BCLO Busy channel Lock-out
Emergency Alarm
PTT & ANI ID
Time-Out Timer (TOT)
Channel Name display and edit
OFF SET FUNCTION
ENGLISH VOICE PROMPT
PC SOFTWARE PROGRAMMABLE & Manual Programmable by keypad on the radio
Specifications:
|
General |
|
|
Frequency Range |
65-108MHz(Only commcercial FM radio reception) VHF:136-173.975MHz & 200-259.975MHz UHF:400-519.975MHz |
|
Memory Channels |
128 |
|
Frequency stability |
2.5ppm |
|
Frequency Step |
2.5/5/6.25/10/12.5/20/25/50KHz |
|
Antenna impedance |
50 ohm |
|
Operating temperature |
-20°C to +60°C |
|
Supply Voltage |
2800mah DC7.4V li-ion battery pack |
|
Consumption in standby |
≤75mA |
|
Consumption in reception |
380mA |
|
Consumption in Transmission |
≤1.4A |
|
Mode of operation |
Simplex or semi-duplex |
|
Duty Cycle |
03/03/54 min. (RX/TX Standby) |
|
Dimensions |
65mm*133mm*41.5mm |
|
Weight |
279g (approximate) |
|
Transmitter |
|
|
RF Power |
4W/1W |
|
Type of modulation |
FM |
|
Emission class |
16K Ø F3E/11K Ø F3E(W/N) |
|
Maximum deviation |
≤±5kHz/ ≤±2.5KHz(W/N |
|
Spurious emissions |
-60dB |
|
Receiver |
|
|
Receiver sensitivity |
0.2µV (at 12dB SINAD) |
|
Intermodulation |
60dB |
|
Audio Output |
1000mW |
|
Adjacent channel selectivity |
65/60dB |
|
Note: All specifications shown are subject to change without notice |
|

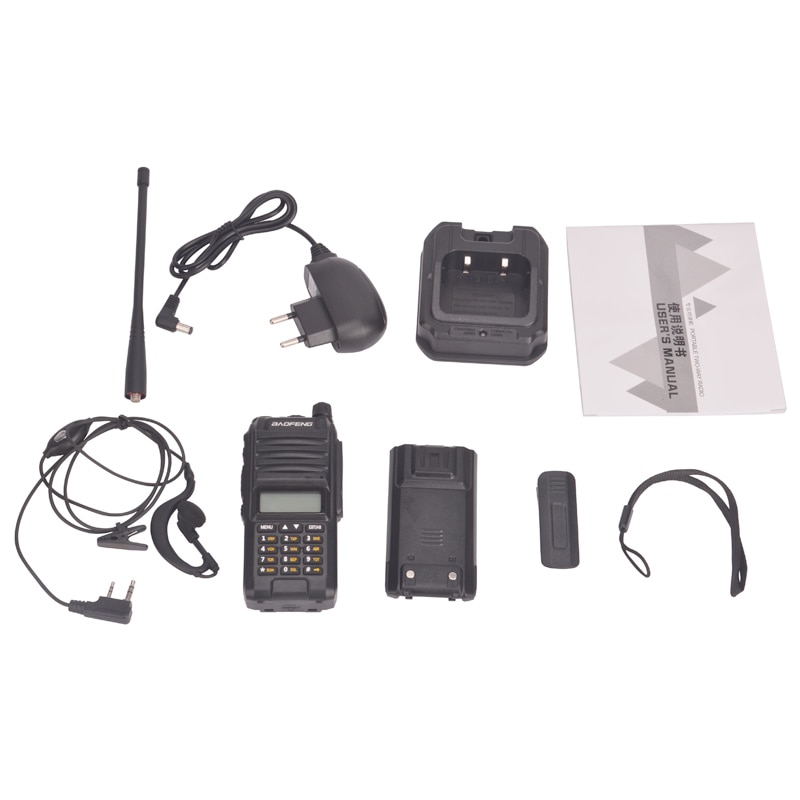

Package Contains:
1× BF-A58S Tri-Band Radio Body (VHF136-173.975,200-259.975MHz & UHF 400-520Mhz)
1× 7.4V 2800mah Li-ion Battery Pack
1× Antenna
1× Belt Clip
1× ENG Manual
1× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country
1× Handsfree
1× Handstrap
Picture:
