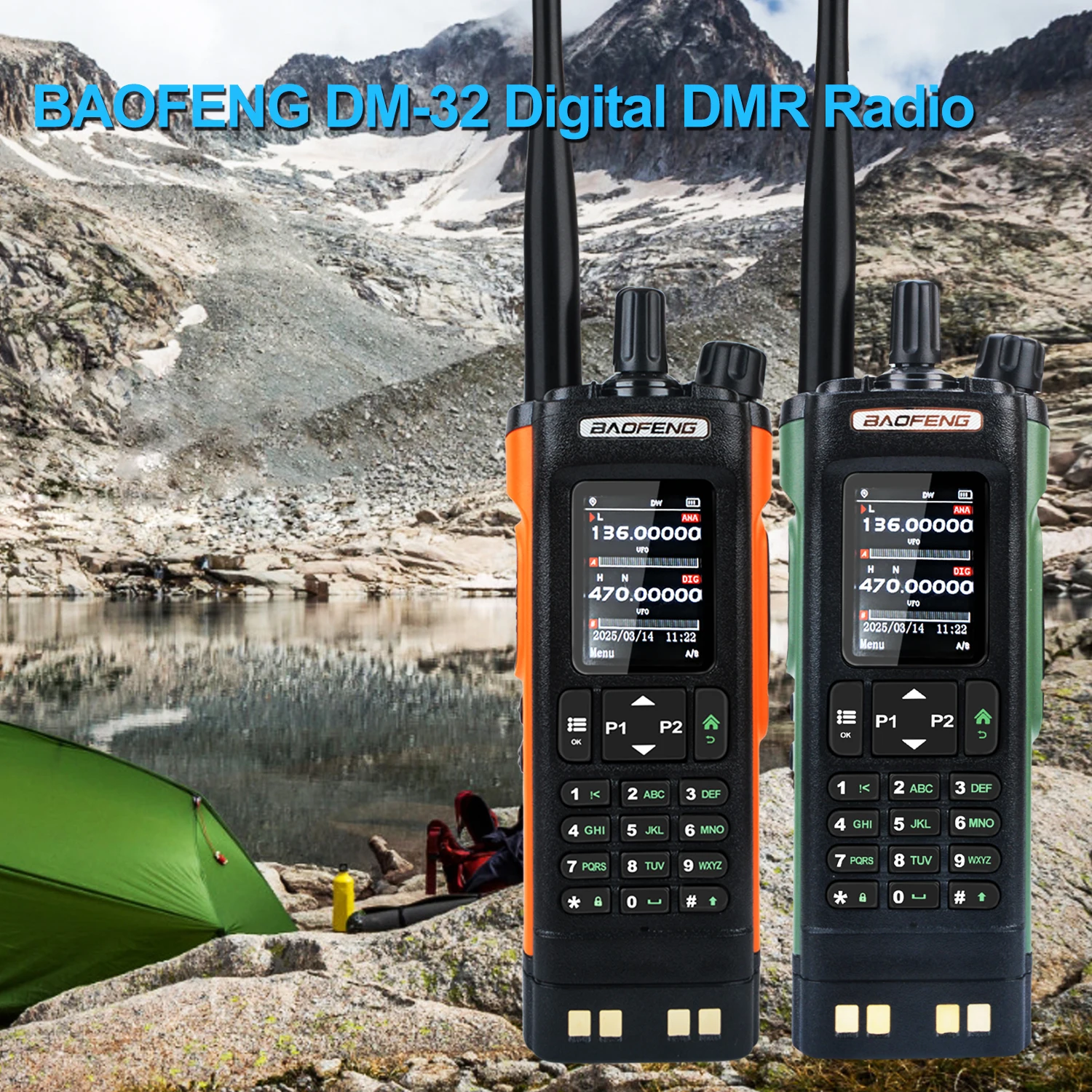

Orange Green Baofeng DM-32 GPS APRS AES256 Encryption DMR Digital Analog UHF VHF Dual Band 8W Air Band FM Walkie Talkie DM-32UV
Feature:

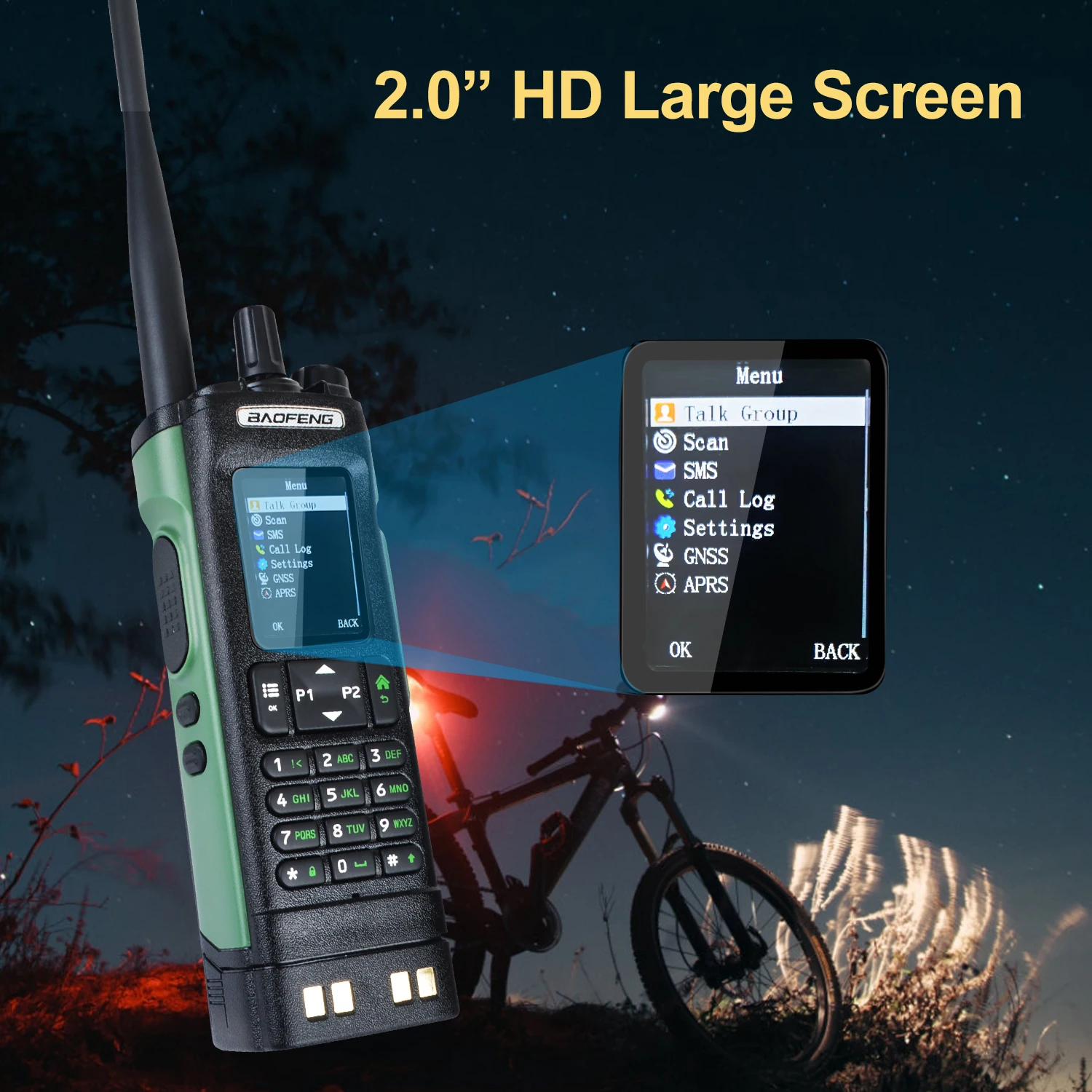

-2.0” High Definition Large Screen
-2500mAh Type-C rechargeable Battery Pack
-H(8W)/M(4W)/L(1W) Output Power Selection
-4000 memory channels, 800+50,000(.CSV) Digital Contacts
-Frequency Range:

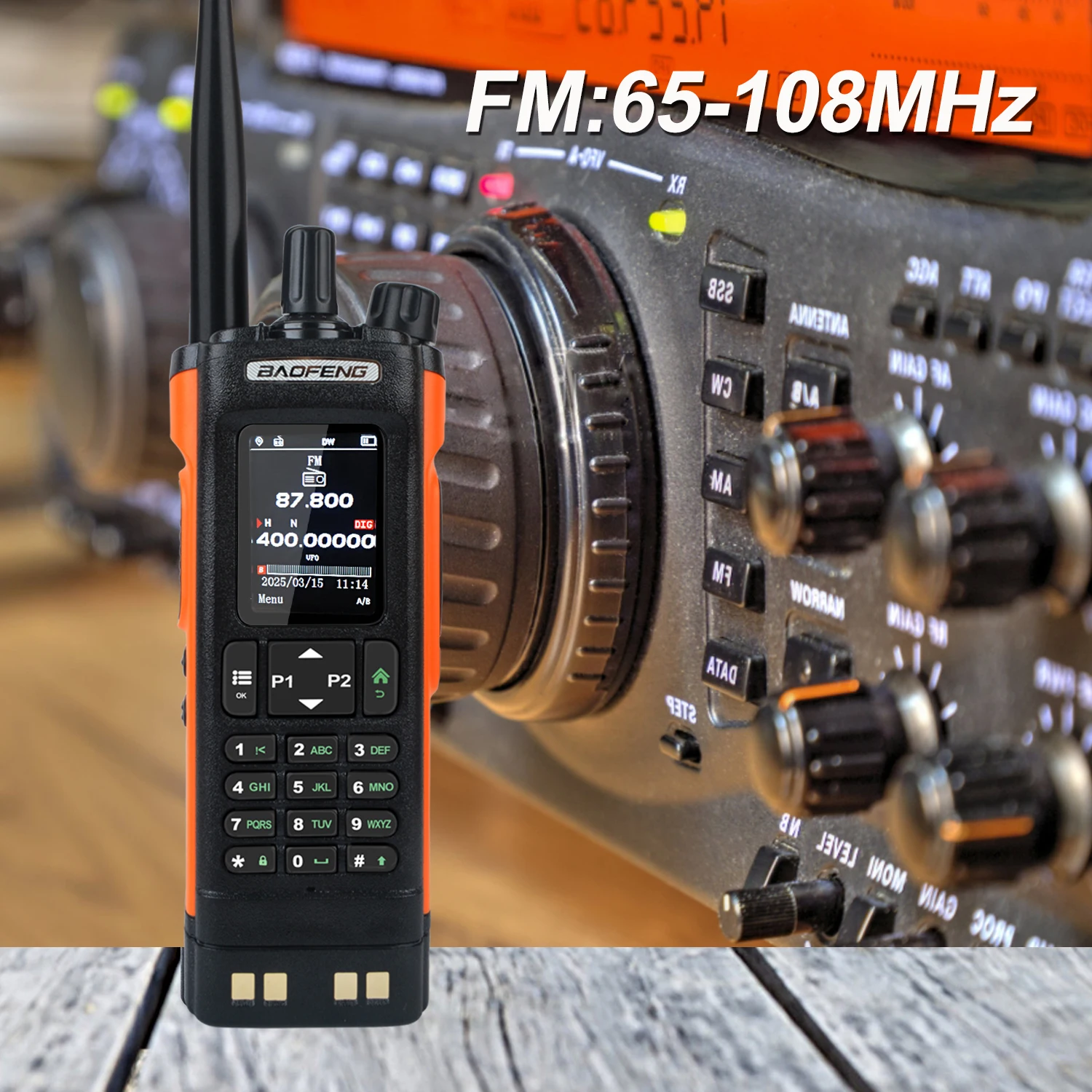

FM Commercial Radio: 65-108MHz
Air band: 108-135.99725MHz (Rx only)
VHF:136-174MHz(Tx&RX)
UHF:400-470MHz(TX&RX)
-Digital-Analog Compatibility,smooth transition
Supports both DMR digital and analog communication modes,ensuring smooth transition from the original analog products to digital products.
-TDMA Dual time slot technology,doubling the user capacity
Straight-through dual-capacity mode communication, realizing two groups of calls at the same time in a frequency point,saving more frequency resources.

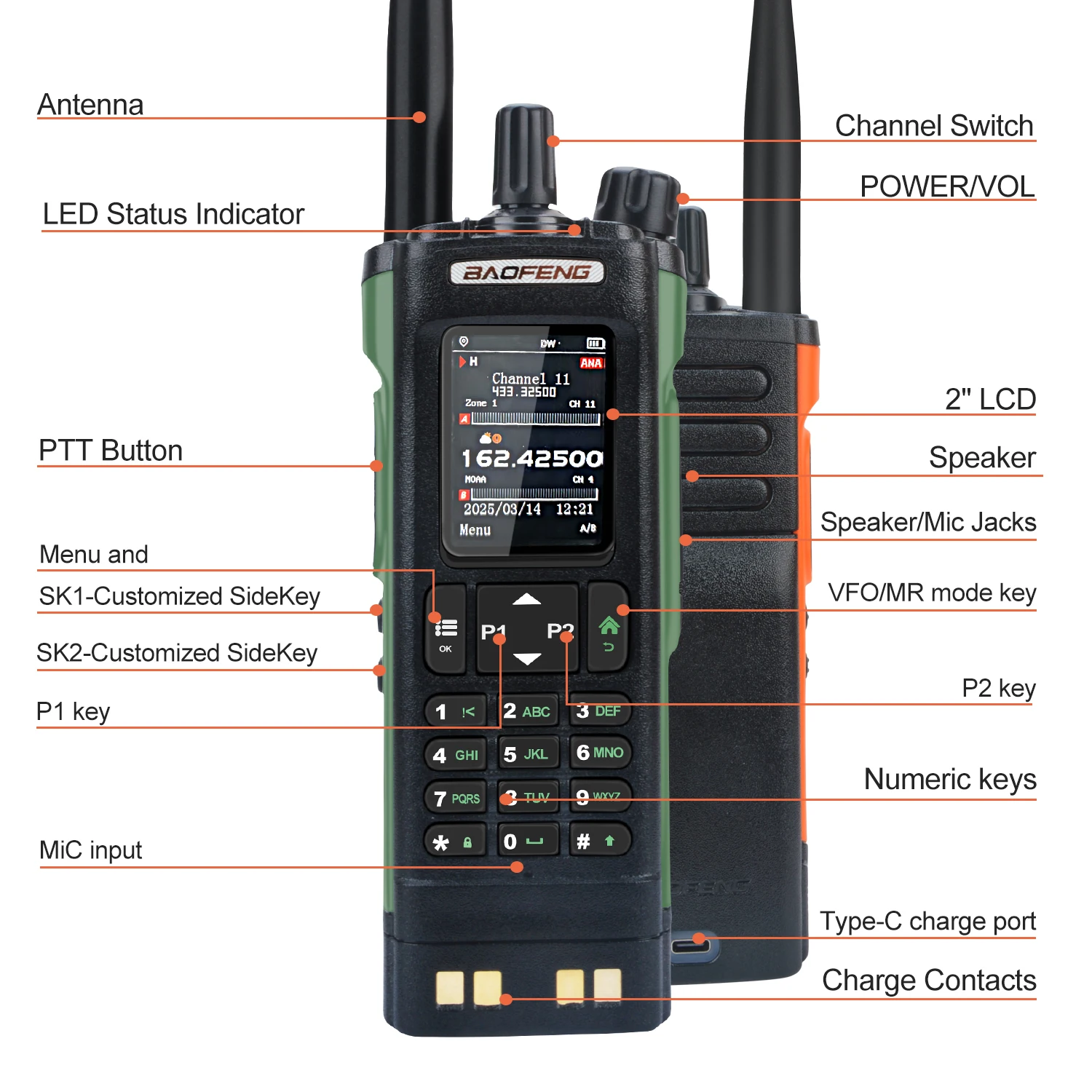

-SK1/SK2/P1/P2 keys customization
-CHG Font, Ch,zone color customization
-VOX/Ana/Digi Mic Gain Adjustable
-DTMF/BDC1200/2TONE/5TONE for Analog Working Mode
-Dual Watch
– Digital mode supports GPS/BeiDou position,APRS,Roaming
-AMBE+2TM Voice encoder, clear and loud voice, no noise interference

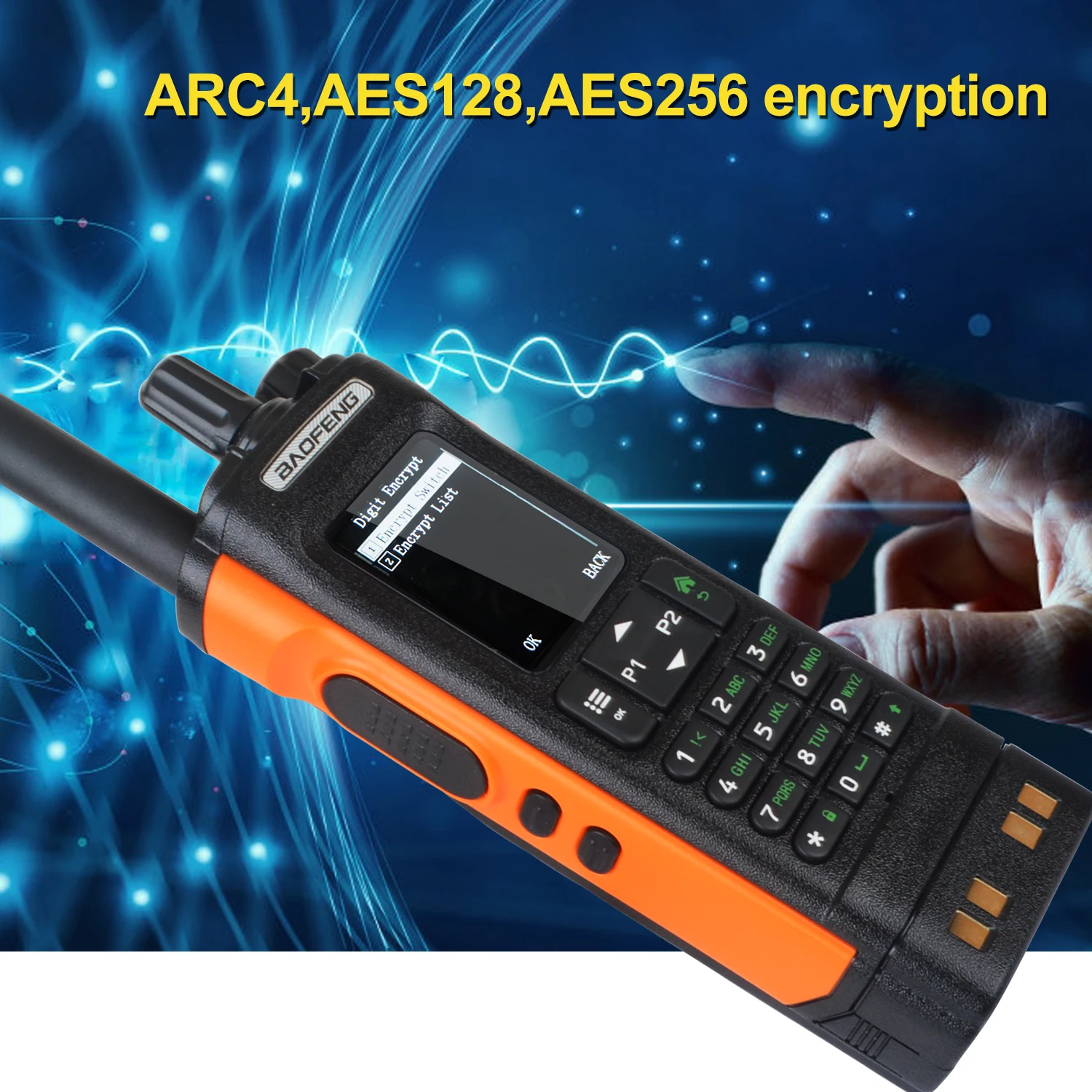

-Voice and data security in digital mode, support customized,ARC4,AES128,AES256 digital encryption
-Scanner: digital, analog hybrid scanning,frequency scanning, channel scanning,scanning by frequency range, CTC/DCS Scanning,scanning recovery mode selectable

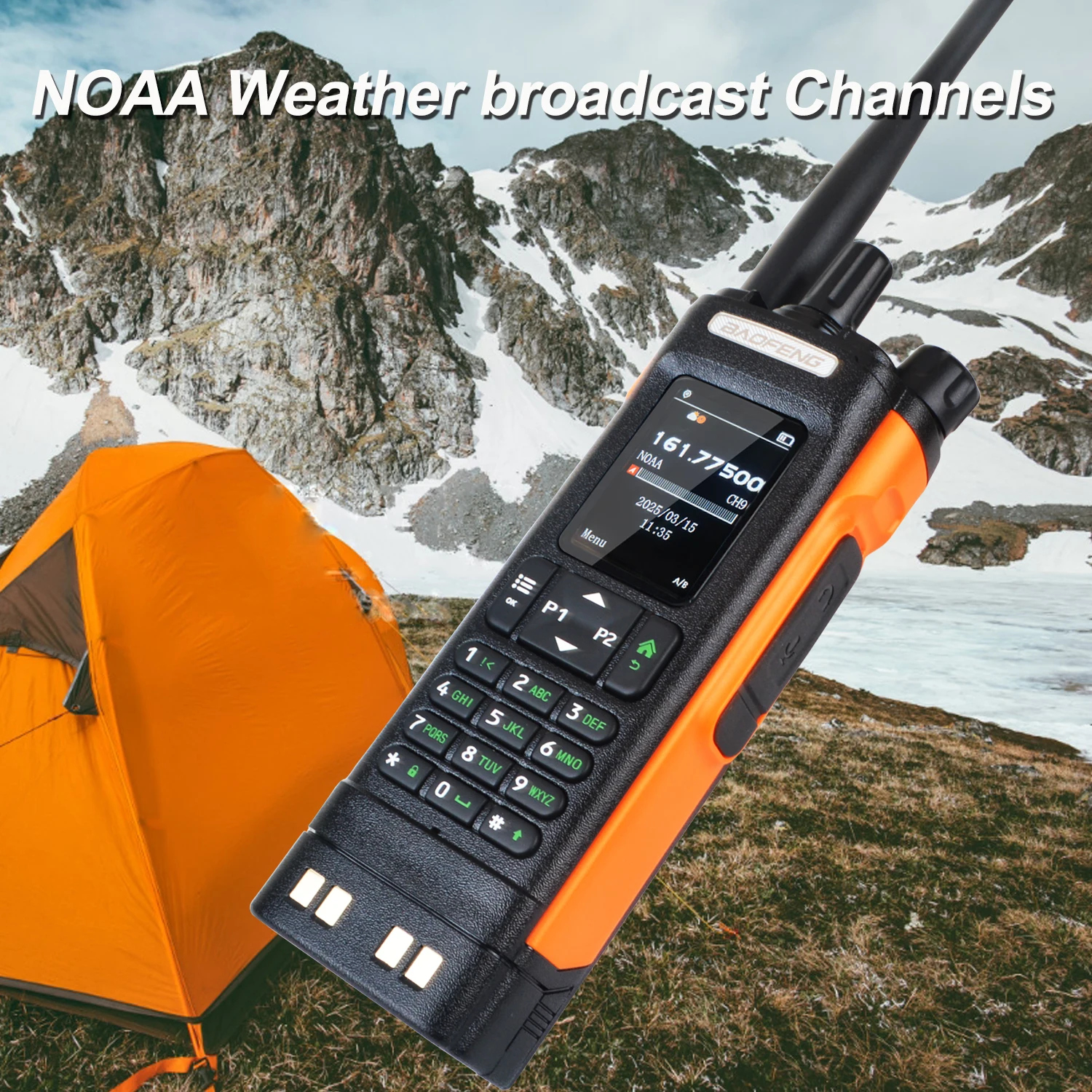

-U.S.A/CA NOAA Weather broadcast Channels

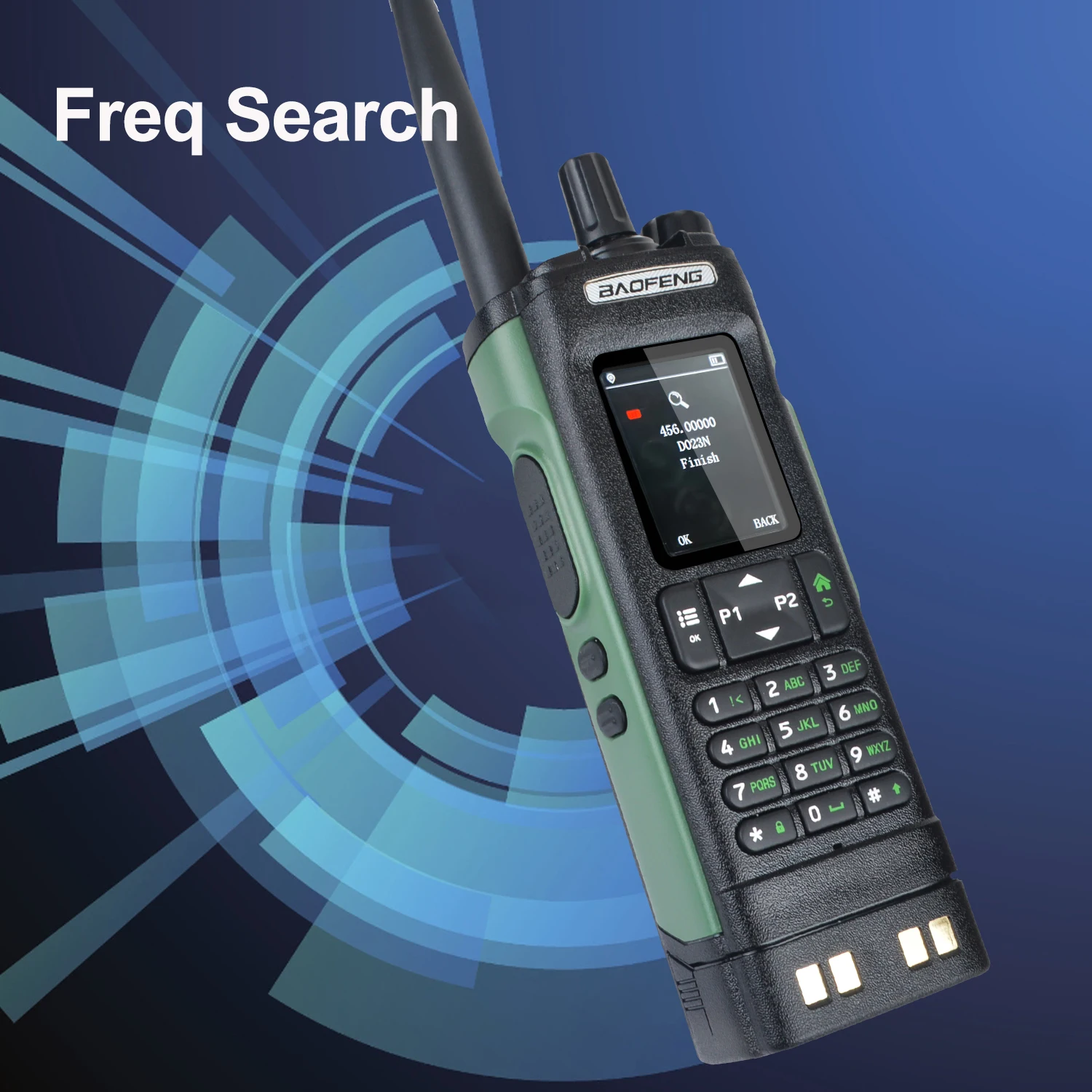

-Freq Search （Wireless copy a frequency from another Radio）
-Mandown alarm
Technical Specifications
| General | |
| Frequency Range | FM:65-108MHz (Commercial Radio Receive only)
Air Band: 108-135.99725MHz(Receive only) VHF:136-174MHz (Tx&Rx) UHF:400-470MHz (Tx& Rx) |
| Memory Channel | 4000 |
| Digital Contacts | 800+50,000(.csv) |
| Channel Spacing | 25KHz (Wide Band),12.5KHz(Narrow Band) |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -10°cto 55°c |
| Operating Voltage | 7.4V DC ±20%/(2500mAh) |

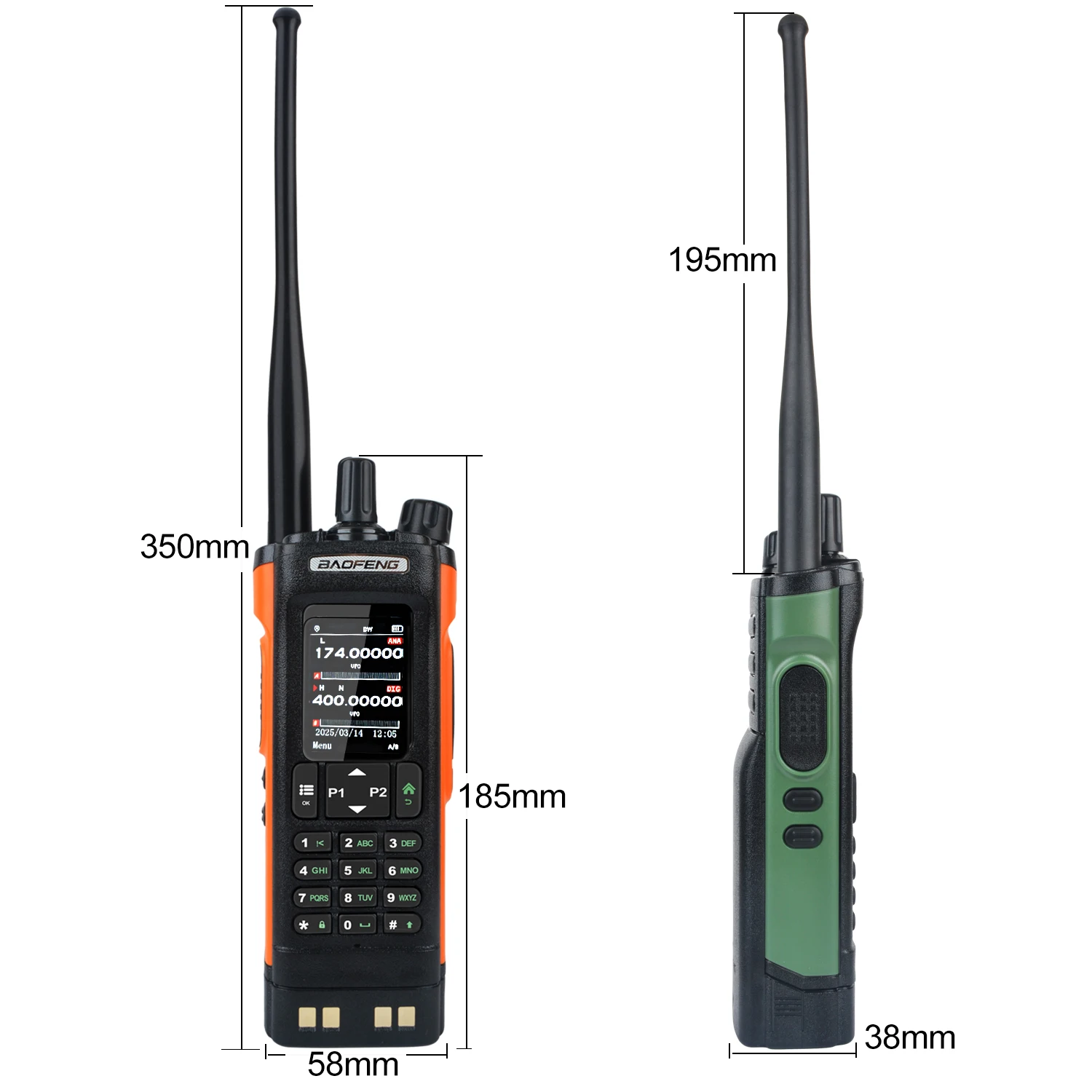

| Dimension | 182*67*41mm(wide battery pack) |
| Weight | 350g (with battery pack, antenna) |
| Transmitting Part | |
| Output Power | High:8W,Middle:4W, Low:1W |
| Output Consumption | Analog ≤2.6A,Digital ≤1.5A |
| Consumption | ≤0.18A |
| FM Modulation | 16K0F3E 25KHz/14KOF3E 20KHz/11KOF3E12.5KHz |
| 4FSK Digital Modulation | 12.5KHz for data:7K60GCF,12.5KHz for data and voice:7K60FXE |
| Modulation Distortion | ≤5% |
| Signal-to-noise (Wide/Narrow) | ≥45dB 25KHz,≥40dB 12.5KHz |
| Adjacent Channel Power | ≤-65dB,≤-60dB |
| Audio Response | +1~3dB |
| Antenna Port Spurious | 9KHz-1GHz:≤-20dBm,1GHz-12.75GHz:≤-20dBm |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Vocoder Type | AMBE+2TM |
| Receiving Part | |
| Analog Receive Sensitivity | -122dBm(12dB SINAD) |
| Digital Receive sensitivity | -120dBm(BER≤5%) |
| Audio Power | ≤1W |
| Audio Distortion | <10% |
| Audio Response | +1~-3dB |
| Signal imitation | ≥70dB |
| Inter-mediation(Wide/narrow) | ≥62dB/≥58dB |
| Adjacent Channel Selectivity | ≥65dB/≥60dB |
| Receive Current | ≤380mA |
| PM Noise | ≥45dB 25KHz/≥40dB 12.5KHz |
*All specifications may be modified without prior notice or liability.
Package Contains:
1×DM-32 DMR Digital Radio Body
1×7.4V2500mah Li-ion Battery Packwith USB-C Charging Port
1×SMA-Female Dual Band Antenna
1×Goose Tube Tactical Dual Band Antenna32CM (Optional)
1×USB Programming Cable (Optional)
1×Speaker Microphone (Optional)
1×Desktop Charger
1×AC Adapter
1× Belt Clip
1× ABS Plastic Holster
1× ENG Manual

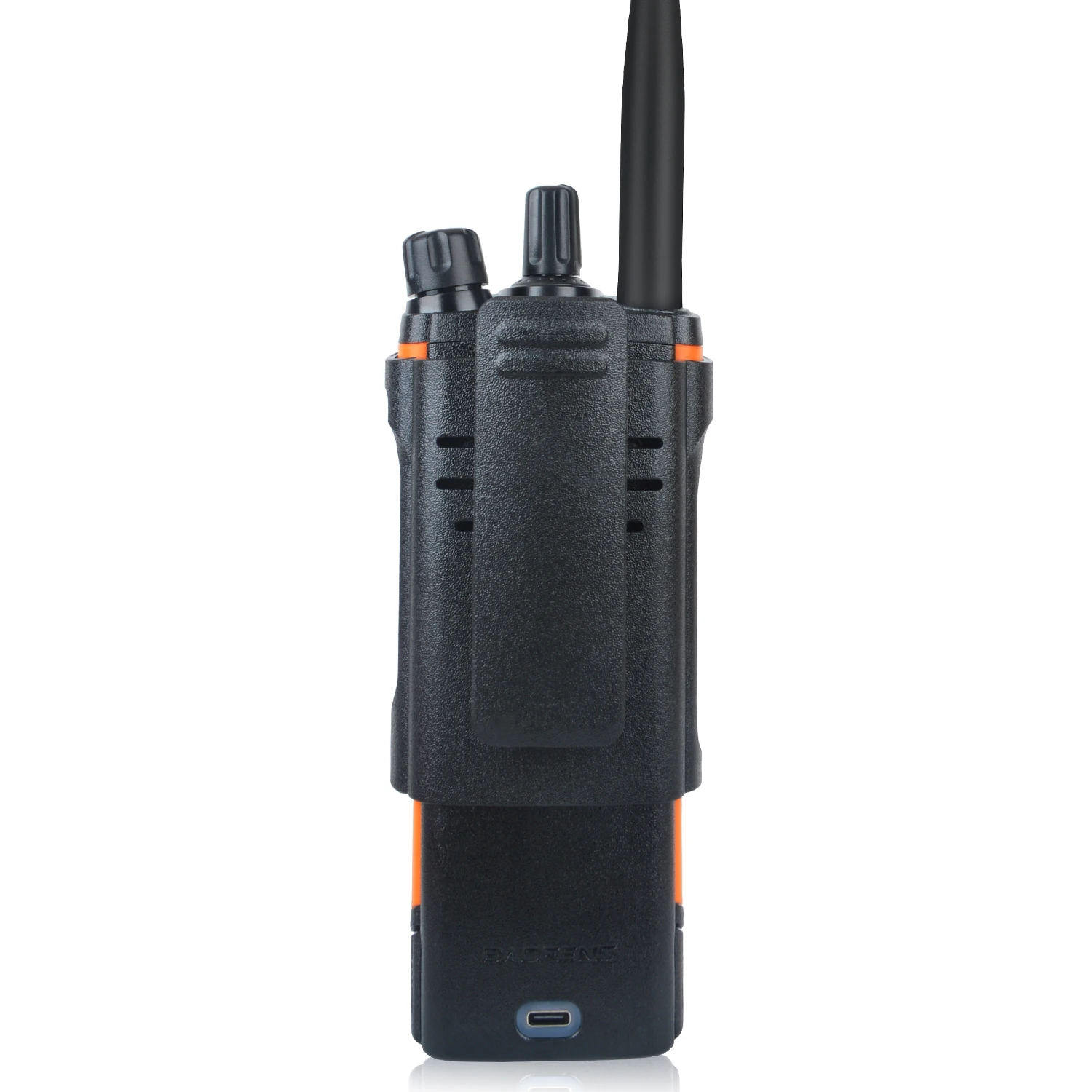

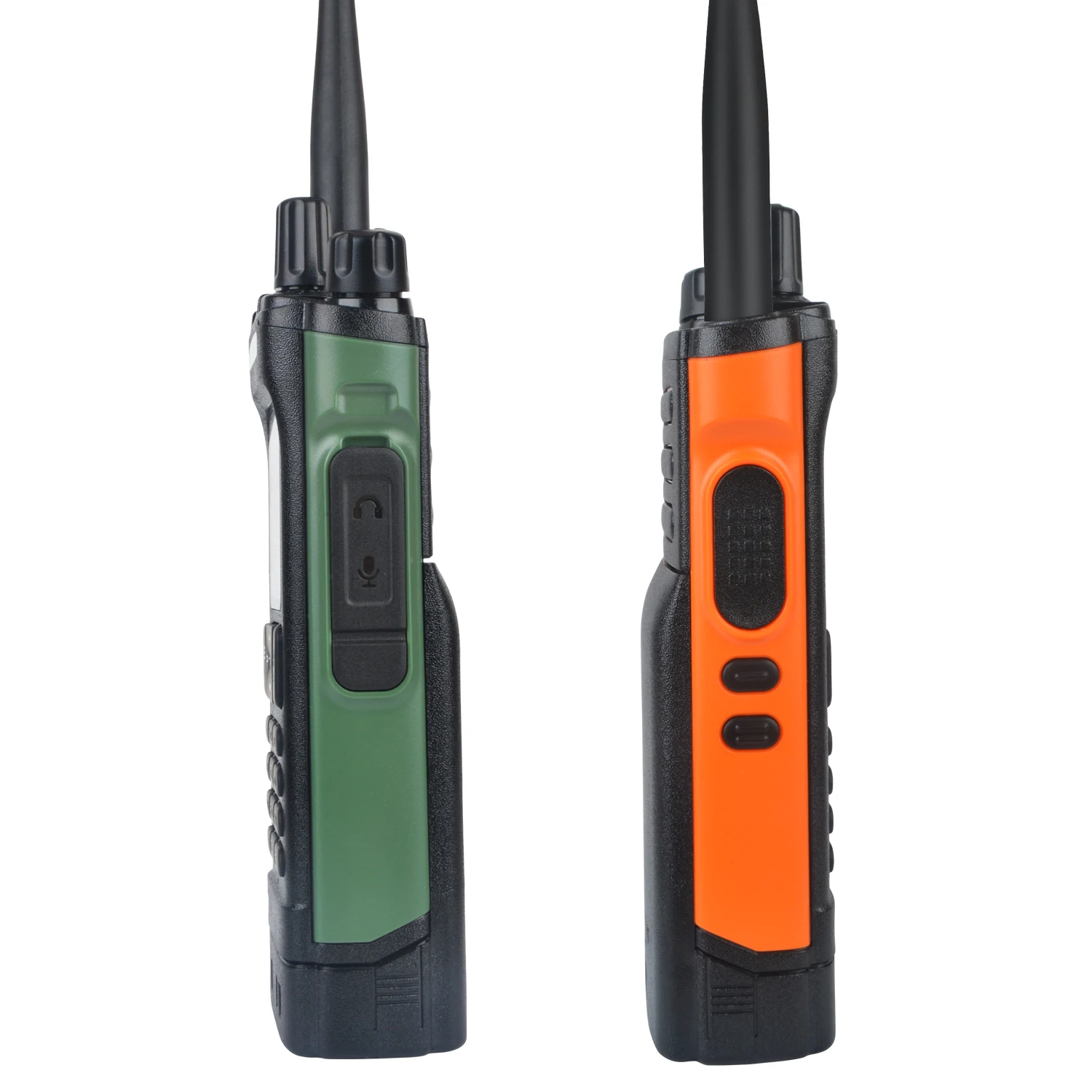

Photos:
