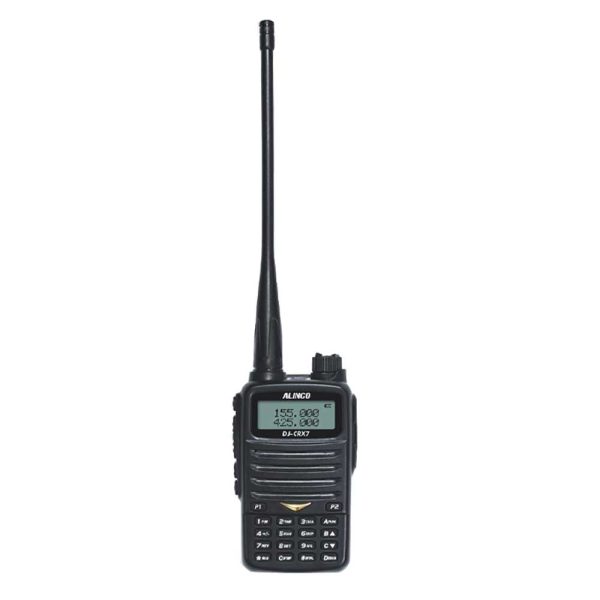

HT Alinco DJ-CRX7  FM Transceiver 5W Dual Band UHF VHF 200 CHS Portable Walkie Talkie

HT Alinco DJ-CRX7, HT Dual Band VHF and UHF, Output 5W VHF / 4W UHF. With 200 channels, HT charger and HT battery Alinco DJ-CRX7 Li-Ion 1500 mAh

Align DJ-CRX7 HT Dual Band

HT Alinco DJ-CRX7 is a handy talky offering a variety of advanced and practical features for its use. The two-band HT frequency string VHF 136-174 MHz and UHF 400-438 MHz, which allows you to listen to two frequencies simultaneously. Besides, this radio also has FM receivers.

HT Alinco DJ-CRX7 handy talky double-screen and coloured keypad

This radio has a large dot-matrix screen that can display three colour options. The idea also has light that facilitates use in dark conditions.

Half-Duplex HT dual band and FM receiver

This HT Alinco DJ-CRX7 supports a dual band (VHF and UHF), which allows you to listen to two frequencies simultaneously. Besides, this radio also has FM receivers.

200 HT memory channels Alinco DJ-CRX7

Alinco DJ-CRX7 can store up to 200 memory channels that can cover a combination of VHF and UHF frequencies.

Internal VOX and reverse tracking

VOX curve feature

DJ-CRX7 Alinco specification

General

Frequency Coverage (76-108MHz included)	136-174 MHz 400-438 MHz
TX Frequency Coverage	136-174 MHz 400-438 MHz
Modulation	F3E(16K0F3E / 11K0F3E / RX only WFM)
Frequency stability	±2.5ppm
Power supply requirement	7.4V (Battery)
Current drain (Approx.)	1500 mA TX / 300 mA receive at Max audio output 80mA squelched
Usable temperature range	－20～ +55°C(-4～131°F
Channel step	2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz
Dimensions	92 x 57 x 35 mm (with battery pack)
Weight	approx.213g inclusive of battery pack and antenna

Transmitter

Output Power (Approx)	Approx. 5W(VHF) / 4W(UHF) / 2W / 1W
Frequency Deviation	±5kHz / ±2.5kHz
Spurious emission	– 60dB or less

Receiver

Receiver System	Direct conversion
Sensitivity(12dB SINAD Wide/Narrow)	Wide -12dBu / Narrwo -9dBu
Adjacent Channel Selectivity	Wide More than 65dB /Narrow More than 60dB
Audio output power	1W (10% distortion)

Specifications subject to change without notice or obligation. Product intended for use by properly authorized operators.
*VFO(frequnecy) mode may not be available due to regulation. Please consult with   your dealer before purchase

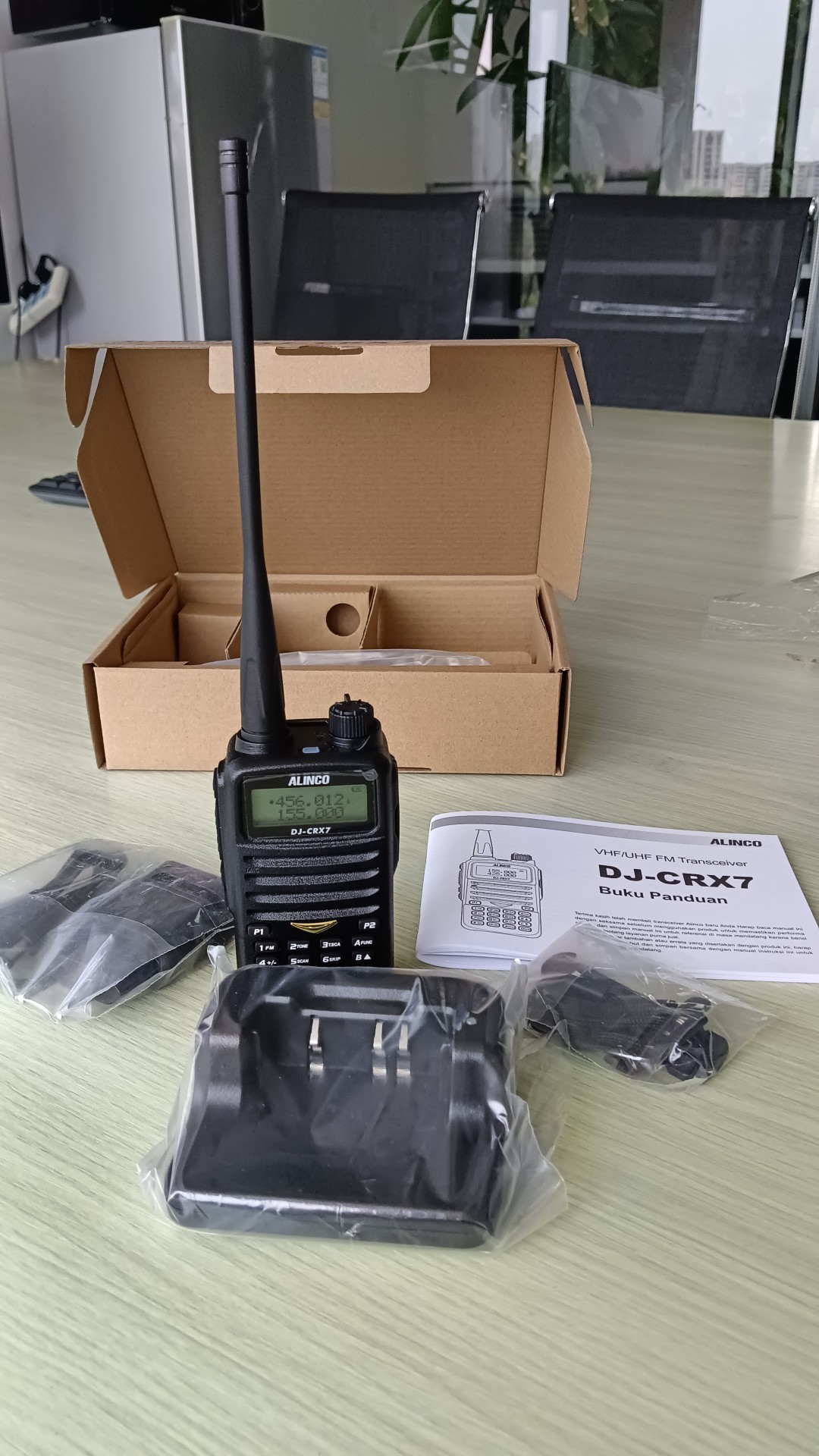

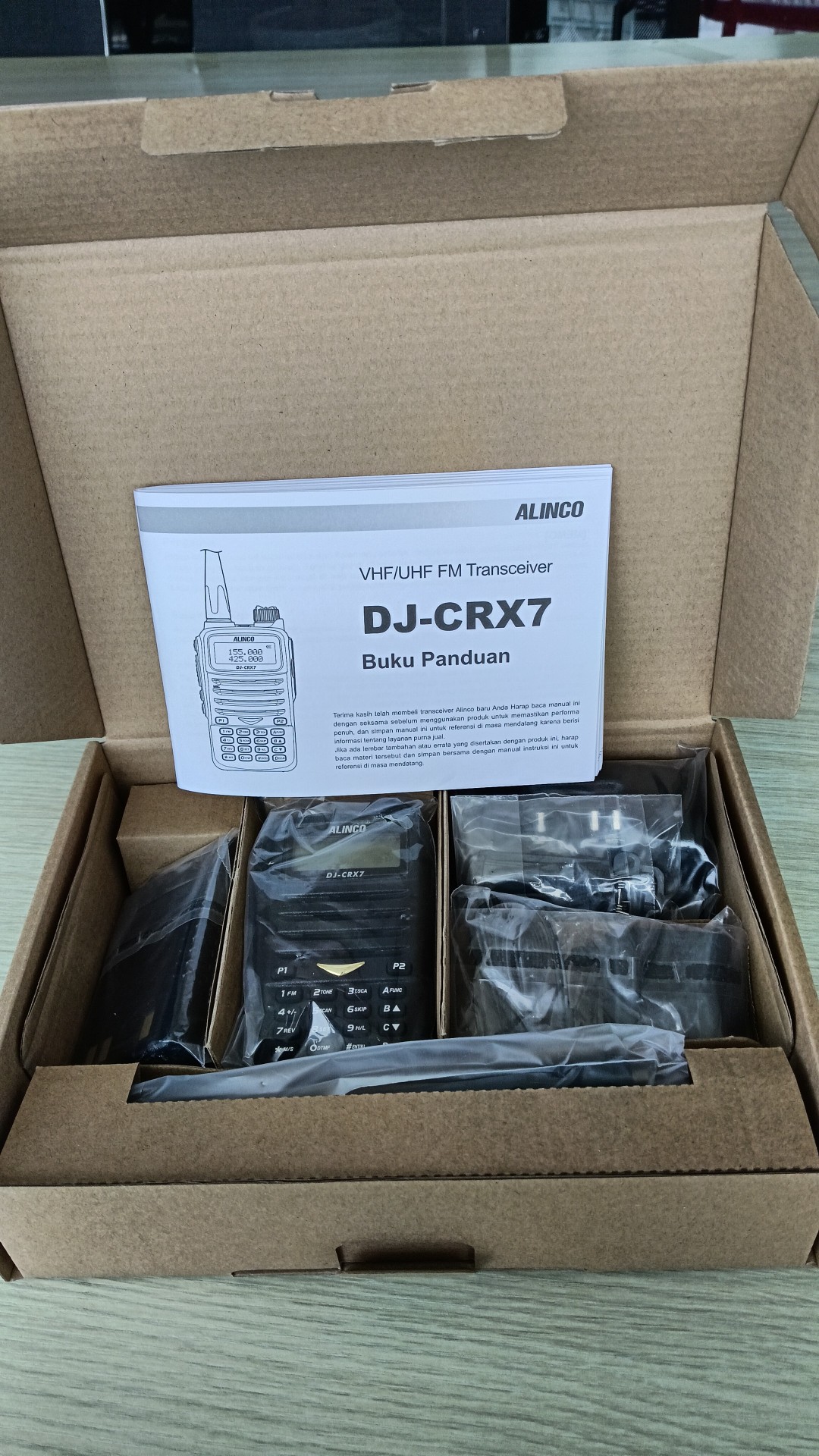

Accessories package:

• EA-277 Whip Antena
• EBP-107 Baterai Pack
• EDC-314 Rapid charger
• EDC-315 AC Adapter
• EBC-41 Belt clip
• Manual book

Accessories  Opsional:

• EMS-76 Speaker Microphone
