Icom 2720H Amateur Mobile Transceiver Dual Band FM Car Radio

Leave a Comment / By /
Sale!
Icom 2720H Amateur Mobile Transceiver Dual Band FM Car Radio
Icom 2720H Amateur Mobile Transceiver Dual Band FM Car Radio - Image 2
Icom 2720H Amateur Mobile Transceiver Dual Band FM Car Radio - Image 3
Icom 2720H Amateur Mobile Transceiver Dual Band FM Car Radio - Image 4

Icom 2720H Amateur Mobile Transceiver Dual Band FM Car Radio

Original price was: $689.00.Current price is: $376.00.

& Free Shipping
Guaranteed Safe Checkout

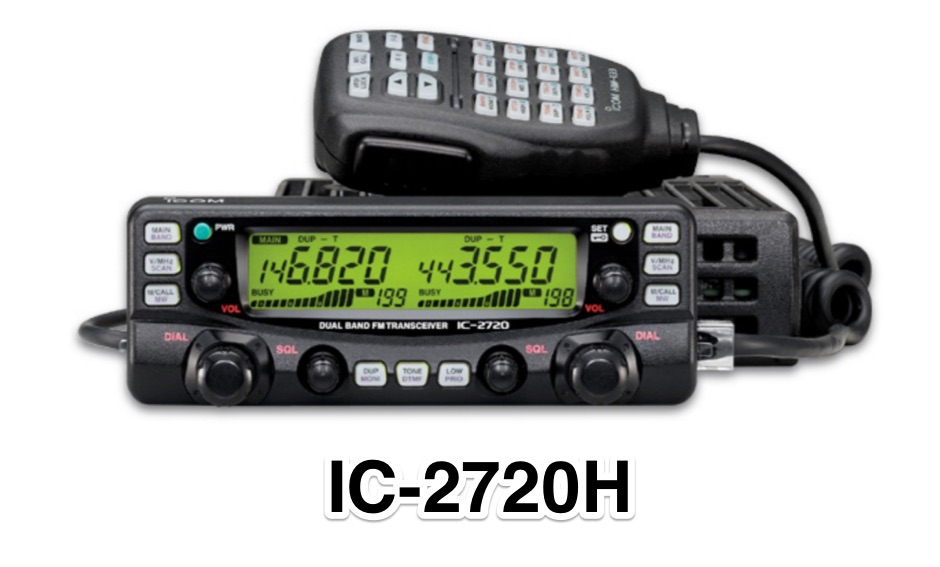

ICOM IC-2720H Dual Band Mobile Amateur FM Mobile Radio walkie talkie

Icom 2720H mobile transceiver Review : Resource Detail

1. FM mobile walkie talkie main features

 Main Features:

10dB RF attenuator
Selectable squelch delay of mobile interphone
9600bps packet data terminal (mini-DIN 6-pin connector)
Optional MB-85 allows you to mount the controller to the main unit
14 DTMF memory channels (24 digits)
Sub band auto mute function
MOS-FET power amplifier
Weather Alert of car radio
Auto repeater function of mobile interphone
Wide/narrow channel spacing
V/V, U/U simultaneous receive capability
Independent controls for each band
Dynamic Memory Scan (DMS)
DTCS and CTCSS of mobile interphone



2. FM mobile walkie talkie specification



Specification:

Frequency range 118-999,144-148,430-440MHz
Channel 212 (2 call channels, 10 scanning edges)
Mode FM, AM
Antenna connector 50Ω
Power supply requirement (negative ground)  13.8 V DC ± 15%
Frequency Rate 5,10,12.5: 15, 20, 25, 30, 50 KHZ
Operating temperature range   -30°C to +60°C;
-22°F to +140°F
Frequency stability ±5 ppm (-30°C to +60°C)
Dimensions (projections not incl.)    control panel: 140x50x24 5mm
the host machine: 140x50x187mm
Weight (approx.) the control panel:150g

the host machine: 1.25 kg
Output Power 50W(VHF),30W(UHF)W
Talk confirmation tone end have
Display LED Display

 Each Set Package Contain:

1 x IC-2720H Mobile Radio
1 x Speaker Mic.
1 x Power Cable
1 x Installation Bracket
1 x Installation Kits (Screws .etc)
1 x User Manual

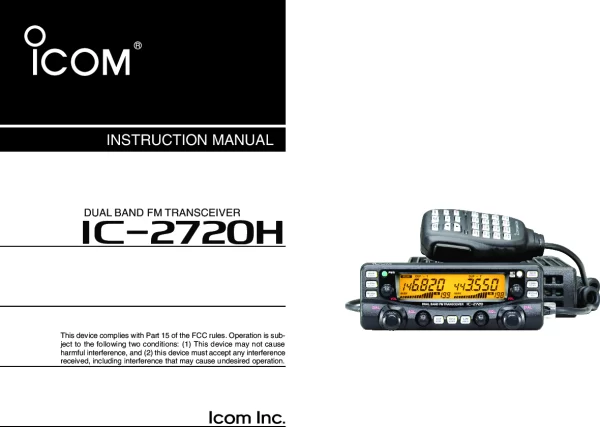

IC 2720H Instruction Manual ICOM user
Weight 1.5 kg
Dimensions 400 × 400 × 200 cm
