Kenwood TM-271A/TM-471A Vehicle-mounted Mobile Radio 60W Two way radio VHF/UHF Car Radio transceiver CTCSS & DCS with DTMF MIC Professional Radio
TM471: UHF400-430/440-480MHz
TM271: VHF136-174MHz
Frontiers are not for the weak. It takes a rugged vehicle to meet the challenges of the wilderness, and Kenwood’s TM-471A/TM271 is tough. This compact, MIL-STD-compliant transceiver delivers powerful mobile performance and such advanced features as multiple scan functions and memory names. On or off the road, you can always enjoy the sophistication of high-quality audio. Illuminated keys and a large LCD with adjustable green backlighting for easy operation day or night help make the TM-471A/TM271 the ideal companion for all your travels…
Main Features:
– HIGH RF POWER OUTPUT (TM271:60W, TM471:40W )
– US MIL-STD 810 C/D/E/F & EUROPE’S E-MARK
– ALPHANUMERIC LCD AND ILLUMINATED KEYPAD
– DTMF MICROPHONE
– HIGH-QUALITY FRONT SPEAKER
– MULTIPLE SCAN FUNCTIONS
– 200 MEMORY CHANNELS PLUS 1 CALL-CHANNEL
– MEMORY NAME FUNCTION
– CTCSS & DCS ENCODER/DECODER
– HIGH FREQUENCY STABILITY
– Busy Channel Lock-Out
– TOT(Time Out Timer)
– PC Programmable + Keypad/Manual Programmable
– High/Low Power Switchable
Specification:
| Model | TM-271/TM-471 |
| Frequency range | 136-174MHz/400-430/440-480MHz |
| Mode | F3E(FM) |
| Antenna Impedance | 50 ohm |
| Operating Temperature | -25°C—+60°C |
| Power Voltage | 13.8V DC ±15%(11.7-15.8V) |
| Dimension | 160*43*137mm |
| Weight | 1.2Kg |
| Transmitter | |
| Power output | High 60W/40W, Low 25W |
| Frequency Stability | ±2.5ppm |
| Spurious Emissions | better than -60dB |
| FM noise | ≤-40dB |
| Audio distortion | ≤3% |
| Max. Frequency Deviation | ≤±5KHz(wide) ≤±2.5KHz(narrow) |
| Microphone Impedance | 600ohm |
| Receiver | |
| Frequency Stability | ±2.5ppm |
| Sensitivity | Better than 0.18uV(wide)/0.22uV(narrow) |
| Modulated bandwidth | ≥ ±7KHz(wide)/3.5Khz(narrow) |
| Adjacent channel selectivity | ≥ 60dB |
| Intermodulation Rejection | ≥65dB |
| Spurious response rejection | ≥65dB |
| Audio output power | 2W or Above |
| Audio output Impedence | 8 ohm |

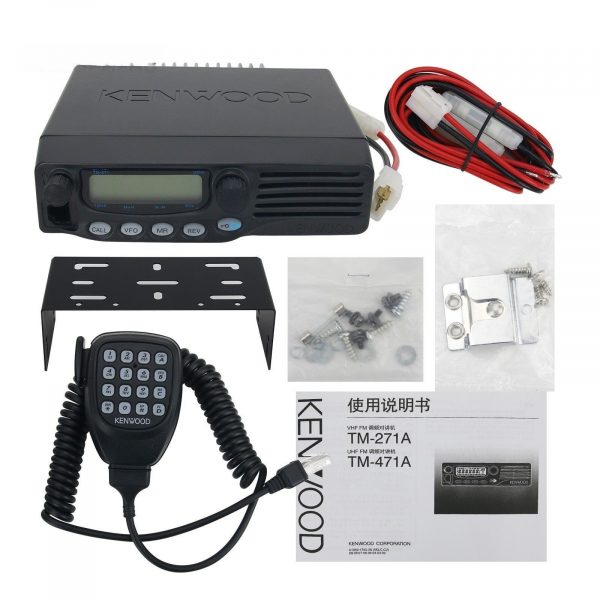

Each Set Package Contain:
1 x TM471/TM271 Mobile Radio
1 x Speaker Mic.
1 x Power Cable
1 x Installation Bracket
1 x Installation Kits (Screws .etc)
1 x User Manual
