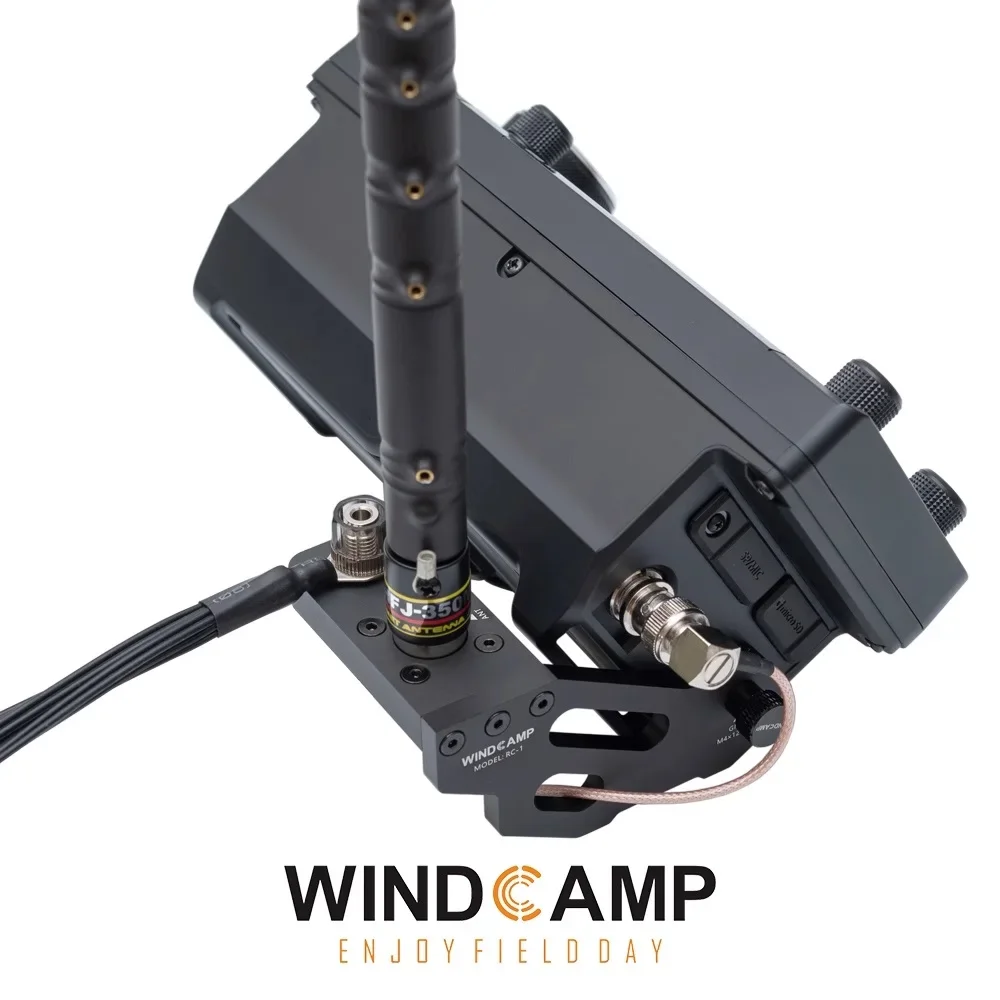

RC-1 is designed for ICOM IC-705 portable transceiver with desktop type quick disassembly antenna bracket. The aluminum alloy is refined by CNC machine tool, which can be easily connected to small GP antenna (such as UV band vehicle antenna, comet HFJ-350M short-wave antenna, etc.). Equipped with ground pile, it can be connected to the ground network to improve antenna efficiency.

Engineered Precision for ICOM IC-705 Operators
The WINDCAMP RC-1 is a purpose-built quick-release antenna mount exclusively engineered for the ICOM IC-705 transceiver. CNC-machined from aerospace-grade aluminum alloy with hard-anodized finish for corrosion resistance and field durability.

✅ Key Features

• 🔒 Secure Quick-Release System: Triangular ergonomic handle delivers 30% higher locking torque vs. standard round knobs—prevents loosening during mobile/field use
• ⚡ Signal Optimization: Integrated ground terminal connects to ground wire or counterpoise network, reducing SWR and boosting HF/UHF/VHF signal clarity
• 📡 Universal Antenna Support: Holds GP antennas, Comet HFJ-350M, mobile whips (U/V bands), and lightweight HF antennas (max 1.2kg)
• 🔩 Anti-Loss Design: Dedicated screw storage cavity prevents lost hardware during setup
• 📦 Complete Kit: RC-1 mount + RF coaxial cable (RG174, SMA-J to BNC) + ergonomic hand screw

⚠️ Critical Compatibility Notes

• ✅ Fits: ICOM IC-705 radio body (mounts directly to radio’s antenna base)
• ❌ Does NOT fit: ARK-705 CASE, IC-705 with third-party cases, or other ICOM models
• 📻 Radio NOT included – Mount only

Ideal for ham radio field day, SOTA/POTA operations, emergency comms, and portable HF setups. Trusted by amateur radio operators worldwide for reliability and signal integrity.

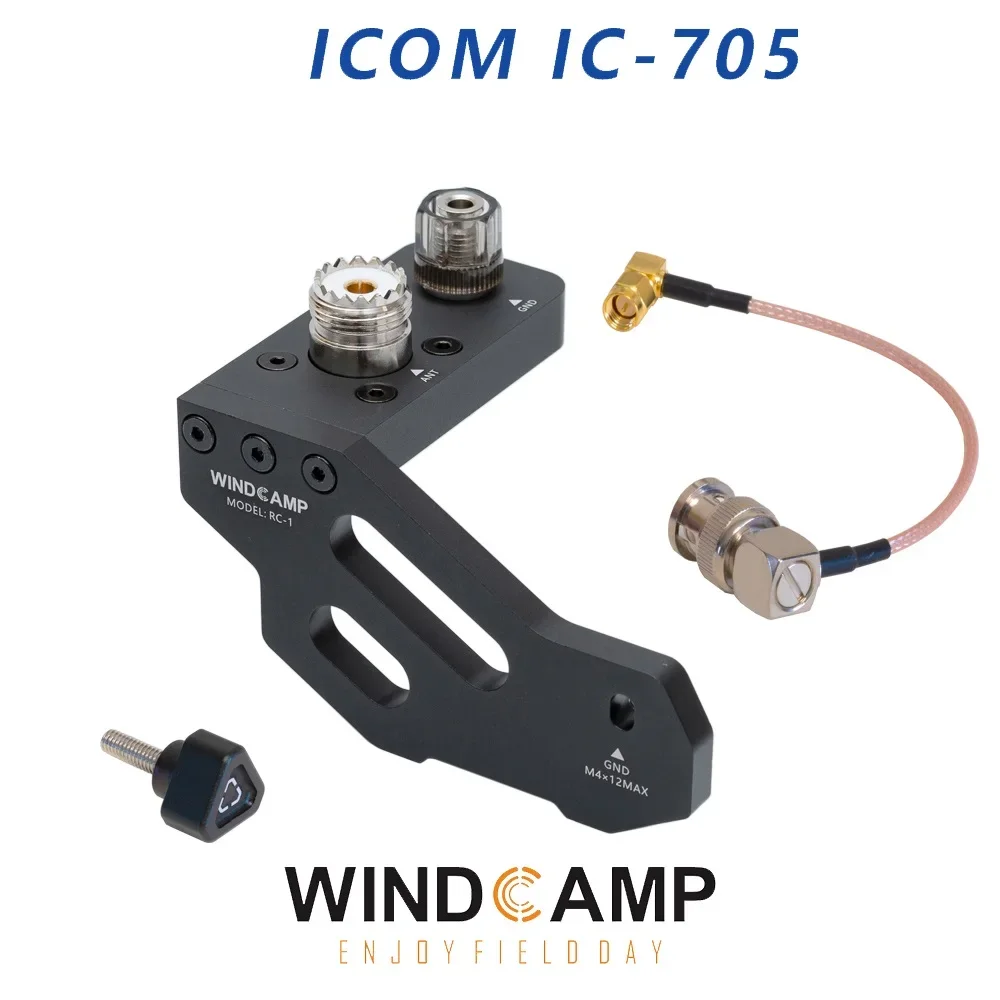

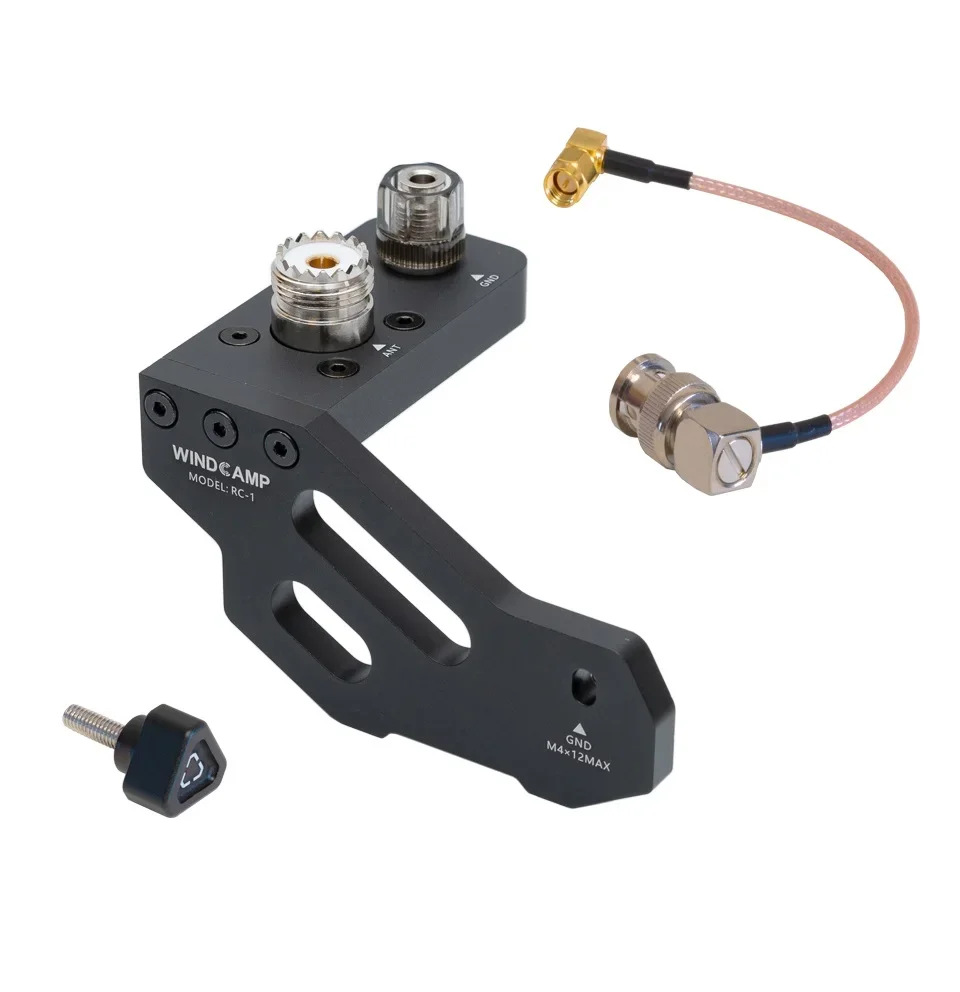

Packing list

RC-1 Quick Remove Antenna Support × 1

Hand Screw × 1

RF Jumper × 1

Q: Is the WINDCAMP RC-1 compatible with the ARK-705 case?
A: No. The WINDCAMP RC-1 is designed for the bare ICOM IC-705 transceiver and is not compatible with the ARK-705 protective case.

Q: What antennas can I use with the WINDCAMP RC-1 stand?
A: The RC-1 supports small GP antennas including VHF/UHF mobile antennas and HF antennas such as the Comet HFJ-350M. Its integrated ground terminal further enhances performance with HF antennas.

Q: Does the WINDCAMP RC-1 include a ground wire?
A: The package includes the antenna stand, an RF connector cable, and a hand screw. Ground wires or ground radial networks should be sourced separately.

Q: Is the WINDCAMP RC-1 suitable for SOTA and POTA operations?
A: Yes. Its lightweight CNC aluminum construction and quick-release design make it an ideal choice for Summits on the Air (SOTA), Parks on the Air (POTA), and all portable amateur radio operations.
