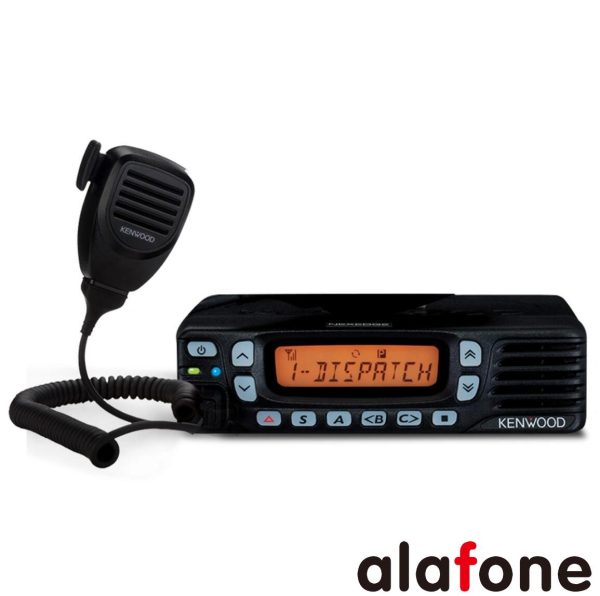

Kenwood NX820 Digital & FM Analog Mobile Radio UHF Transceiver

Kenwood NX820 Digital & FM Analog Mobile Radio UHF Transceiver

Name: Kenwood NX820 Digital &amp; FM Analog Mobile Radio UHF Transceiver
SKU: 10050056723714250980088
Availability: InStock

Original price was: $888.00.Current price is: $665.00.

& Free Shipping

Guaranteed Safe Checkout

Kenwood NX820 Digital & FM Analog Mobile Radio UHF

400-470 MHz 45W, 260 Channels, 128 Zones with Display.

Includes:

Standard Microphone (KMC-35)
Mounting Bracket
DC Cable (KCT-23M)
15A Fuse
Instruction Manual

Features

45W (400-470)
260 CH-GID / 128 Zones
10 Character Alphanumeric Aliases
Backlit LCD & Keys
Function/Status LCD Icons
Transmit/Busy/Call Alert/Warn LED
Blue Function/Status LED
On/Off Power Control
4 Up/Down Selectors
6 Front PF Keys
Emergency/AUX Key
4W Speaker Audio
Zone / CH Number Voice Announcement
DB-15 Accessory Connector
6 Programmable AUX I/Os
KPG-141D Windows® FPU
Flash Firmware Upgrading
MIL-STD-810 C/D/E/F/G
IP-54 Water & Dust Intrusion
PC Serial Interface
SDM Manual Input
Transparent Data Mode
Built-in GPS Receiver

DIGITAL COMMON

NXDN® Digital Air Interface
AMBE+2™ VOCODER
6.25 & 12.5 kHz Channels
Over-the-Air Alias
Over-the-Air Programming2
Paging Call
Emergency Call
All Group Call
Status Messaging
Remote Stun/Kill/Check
Short & Long Data Messages
GPS Location with Voice
NXDN® Scrambler Included

DIGITAL CONVENTIONAL MODE

64 Radio Access Numbers (RAN)
Individual & Group Selective Call
Mixed FM/Digital Operation
Conventional IP Networks
Site Roaming

DIGITAL TRUNKED MODE

Individual Private Call
Group Call & Broadcast Call
Telephone Interconnect
Transmission Trunked Mode
Message Trunked Mode
Call Queuing with Priority
Late Entry (UID & GID)
4 Priority Monitor ID’s
Remote Group Add
System Auto Select

DIGITAL – MULTI-SITE IP NETWORKS NEXEDGE

Generation1 System
48site Trunked IP Network
Auto Roaming Registration
Group Registration NEXEDGE Generation1 System Bridge
8 Trunked Networks per radio (each in a zone)
UID Lists for each network NEXEDGE Generation2 System (option)
1,152 sites Wide Area System
Direct Frequency Assignment SCAN
Single Zone / Multi-Zone / List Scan
Dual Priority Scan (Conventional)

ANALOG MODE – GENERAL

12.5 kHz Channels
Conventional & LTR® Zones
FleetSync®/II, MDC-1200, DTMF
QT / DQT & Two-Tone (Conventional Zones Only)
Voice Inversion Scrambler (16 Codes) MPT ZONES (option)
Single-Site Trunking
Multi-Site Network Trunking
8 Network Capacity
Network Roaming / Registration FleetSync® /II (FM)
PTT ID ANI / Caller ID
Selective / Group Call
Emergency, Status & Text Messages MDC-1200
PTT ID ANI / Caller ID
Emergency, Radio Check & Inhibit

Frequency Range
･VHF: 136-174 MHz (NX-720 / 720H)
･UHF: 450-520 MHz, 400-470 MHz, 350-400 MHz (NX-820 / 820)
･800 MHz: RX: 851-870 MHz, TX: 806-825 / 851-870 MHz (NX-920)
RF Output (Operation guaranteed for 1-5 W)
･VHF:　5-25 W (NX-720 for Europe)
5-30 W (NX-720)
5-30-50 W (NX-720H)
･UHF:　5-25 W (NX-820 for Europe)
5-30 W (NX-820)
5-30-45 W (NX-820)
･800 MHz: 5-15 W (NX-920)
260 Channel / Group ID with 128 Zones
6 Front PF keys & 4 Up / Down Selectors
Emergency / AUX Key
10 Character Alphanumeric Aliases Display
4 W Speaker Audio
Single Priority Scan (Conventional)
DB-15 Accessory Connector
Flash Firmware Upgrading
MIL-Spec Standard Mic
MIL-Spec 12-Key DTMF Mic Option Available
MIL-STD-810 C / D / E / F / G
MIL-STD “Driven-Rain”
IP54 Water & Dust Intrusion
Built in GPS Receiver
(only “G” model. Optional GPS Active Antenna KRA-40G available)

: NXDN® Digital Air Interface
NXDN® Scrambler Included
AMBE+2™ VOCODER
6.25 & 12.5 kHz Channels
Over-the-Air Alias
Over-the-Air Programming
Digital Conventional Mode
Digital Trunking Mode
Mixed FM / Digital Operation (Conventional)
Multi-Site IP Network Compatible
Conventional IP Network Compatible
Telephone Interconnect (Trunking)
